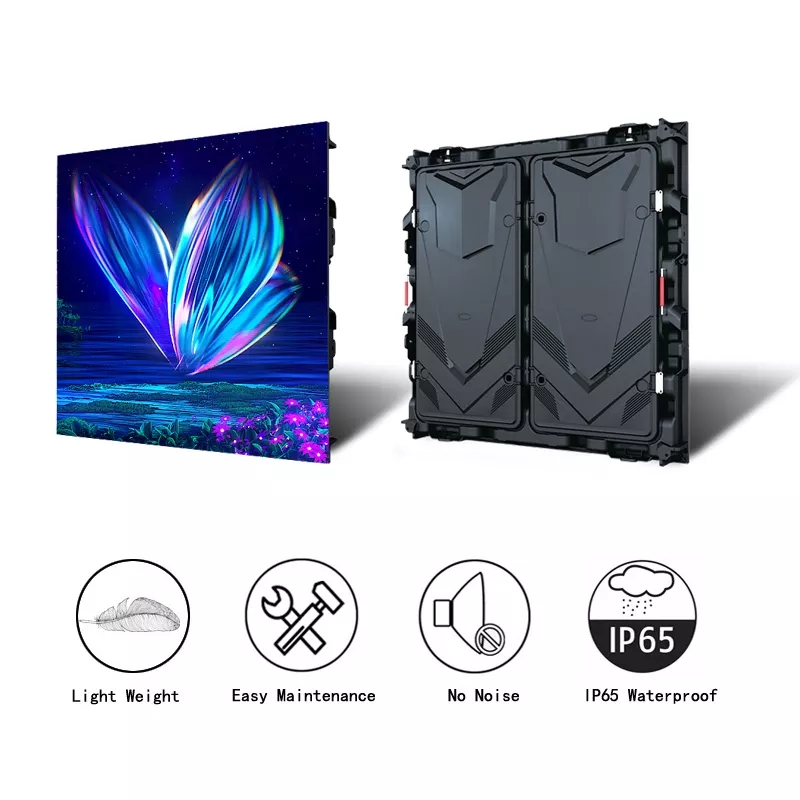

Features and advantages of magnuesium alloy cabinet
1. Ultra-light Diecasting Mag alloy density is 2/3 of Alloy and 1/4 of steel ,which makes the cabinet more light weight compare to same size of steel and Aluminum cabinet .Its specific strength and stiffness and also better than stell and aluminum alloy.
2.Ultra-thin Easy to shape up a product by ,magnuesium alloy , which can make high-end, thin products and make the cabinet thickness thinner
3.Excellent vibration absorption For example , in stress level 35MPa,Magnuesium alloy AZ91D attenuation coefficient is 25%,Aluminum alloy is only 1%in stress level 100MPa ,Magnuesium allou AZ91D,AM60,AS41 is 53%,72% and70%, Aluminum alloy A380 is only 4%.Magnuesium alloy is good for noise reduction.
4.Dimension stable
Temperature and time variation have less effect on the instability og Magnuesium alloy diecasting product , which have higher precision after CNC process.
5.Excellent heat dissipation Fasting cooling--excellent heat dissipation performance to protect the modular circuit
6.Excellent heat property Compare to other material ,Magnuesium alloy heave better radiation protection and anti-interference capacity , make sure the screen works well.
7.High universality
Can be processed according to module drawing , used for outdoor and indoor.
Product Description
| P5 Outdoor Module | |
| Model Number | P5-8S |
| Module size | 320mm*160mm |
| Pixel pitch | 5mm |
| Pixels Density | 40000 dot/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121 |
| Pixel resolution | 64dots(W)*32 dots(H) |
| Max Power consumption | 25W |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Port type | HUB75 |
| Brightness of white balance | ≥7500cd/m2 |
| P5 Outdoor Led Screen | |
| Dimension | 960mm*960mm |
| Quantity of Module | 18 |
| Power supply | 5V/40A |
| Pixel per cabinet | 192*192 |
| Best viewing distance | 5M~20M |
| Temperature | storage:-35℃~+85℃ |
| working:-20℃~+50℃ | 10%-95% |
| Operation humidity | 10%-95% |
| Thickness | 85mm |
| Working voltage | AC220V±10% |
| Average Power consumption | 580W/S |
